Aventure M Ebike
-
Detail
Geometry
Aventure M Ebike is available in 2 sizes to suit most adults.

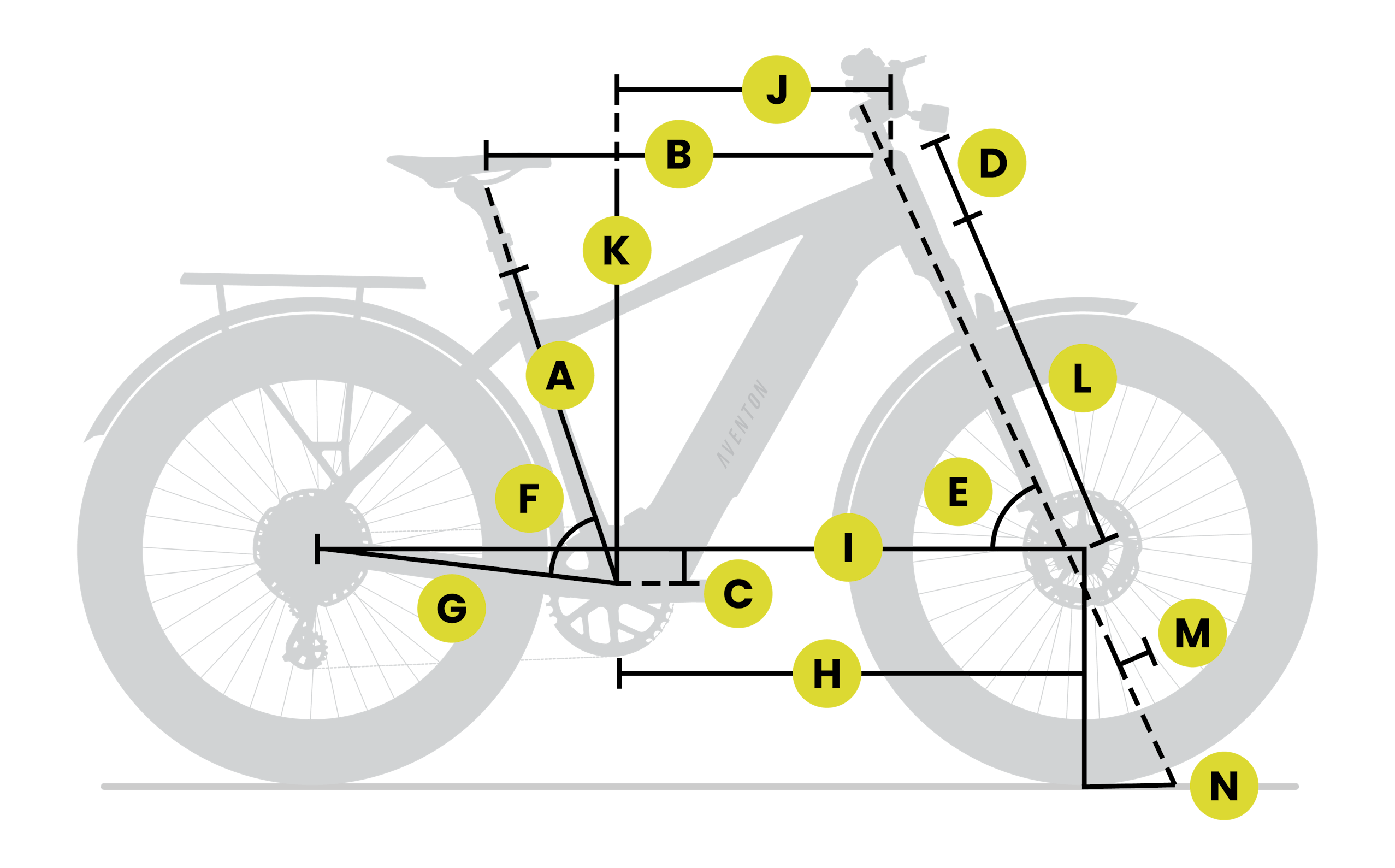

Frame Size Regular Large A - Seat Tube Length 430mm (16") 480mm (18") B - Top Tube Length Horizontal 605mm (23") 643mm (25") C - Bottom Bracket Drop 65mm (2") 65mm (2") D - Head Tube Length 140mm (5") 140mm (5") E - Head Tube Angle 67° 67° F - Seat Tube Angle 72° 72° G - Rear Chainstay Length 470mm (18") 470mm (18") H - Front Wheel Center 693.6mm (27") 731.5mm (28") I - Wheelbase 1156mm (45") 1194mm (47") J - Reach 390mm (15") 428mm (16") K - Stack Height 663mm (26") 663mm (26") L - Fork Length 525.3mm (20") 525.3mm (20") M - Fork Offset 43mm (1") 43mm (1") N - Trail 102.5mm (4") 102.5mm (4") Wheel Size in Inches 26" x 4.0" 26" x 4.0" Rider Height (Range) 160cm - 175cm (5'3" - 5'10") 175cm - 195cm (5'10" - 6'4")
TECHNICAL SPECIFICATIONS
General Info
Model：Aventure M EbikeIdeal Use：All-Terrain PerformanceWeight：73 lbsTotal Weight Limit：400 lbsRider Height：R: 5'3" -5'10" | L: 5'10" - 6'4"Ebike Class：Class 1 (Aftermarket Throttle Available for Class 2 Conversion. Can also be converted to Class 3)Range：Up to 85 MilesWater Resistance：Bike - IPX6 // Motor - IP67Battery Safety Certifications：Certified to UL 2271Frameset
Frame：6061 Aluminum, Gravity Cast Front TriangleFork：Aventon/Zoom Suspension Fork, 80mm travel, with lockoutRear Spacing：190mmFork Spacing：135mmWheelset
Front Wheel：26in, 36 hole, Aluminum Fat tire Rim, Thru Axle, Schrader ValveRear Wheel：26in, 36 hole, Aluminum Fat tire Rim, Thru Axle, Schrader ValveTires：Inova 26x4.0 puncture resistantEbike System
Motor：Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 ratingMotor Torque：100NmDisplay：Aventon BC280Battery：Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cellsBattery Weight：8.7lbsController：Integrated in MotorThrottle：Aftermarket Throttle Available for PurchaseSensors：Double Sided Torque Sensor Integrated in MotorCharger：36V Output: 42V/ 4ACharging time from 0% to 100%：5 hoursLights：Integrated front and rear running lights (no brake lights)Brakes
Front Brake：SRAM DB4 Hydraulic Disc Brakes w/o cutoffRear Brake：SRAM DB4 Hydraulic Disc Brakes w/o cutoffFront Brake Rotor：Sram G2 200mm 6-BoltRear Brake Rotor：Sram G2 200mm 6-BoltDrivetrain
Rear Derailleur：Shimano Cues 10-SpeedShifter：E-ShifterChain：9/10/11 Speed 124LCassette：Shimano Cues 10-Speed 11-39TChainring：44TChainring BCD：N/ACrankset：Aventon 170mm ISIS SplinedBottom Bracket：N/APedals：9/16" Alloy PlatformCockpit
Saddle：Aventon SaddleSeatpost：Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travelSeatpost Clamp：34.9mmHandlebars：Aluminum 31.8, 720mmGrips：Aventon Lock on gripsHeadset：Sealed bearing H887 Peilin 28.6mm * 56mm * 56mm H18.6mm 7pcsIncluded Accessories
Kickstand：Included, rear mountRear Rack：IncludedFenders：IncludedTechnical Overview
Aventure M comes out of the box as a Class I ebike, with pedal assist. An Aventon throttle can be purchased and easily installed on Aventure M to convert to Class 2. Aventon ebikes are built to the IPX6-rated standard. An IPX6 rating means the bike is protected against high-pressure water streams from any angle. This provides strong water resistance, so you can confidently ride in heavy rain or through puddles and mud. However, IPX6 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or sprayer to clean your ebike, as pressurized water can still damage components.FEATURESAventure M Ebike
Aventure M is the perfect blend of rugged capability, performance, and technology to help you explore further than ever before. With maticulously designed frame geometry, a 80mm suspension fork, and 4.0" tires, there's nowhere the Aventure M can't take you. The Aventon A100 mid drive motor provides enough torque and power to conquer any terrain, giving you a responsive ride feel that can be easily customized with Ride Tune capabilities. With Aventon's electronic autoshift functionality ensuring you're always in the right gear at the right time, you can focus solely on the making it to the next mountain peak. ACU technology brings a host of connectivity and added security features including GPS † tracking and an integrated lock, while the updated display brings you important metrics like torque, cadence, and power to help you maximize every ride. No matter where you want to go, Aventure M will get you there. -
